Central Germany

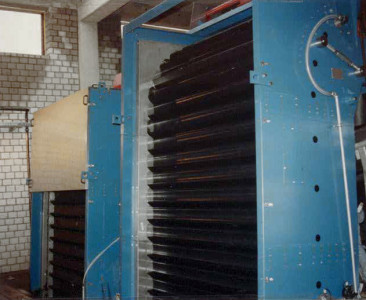

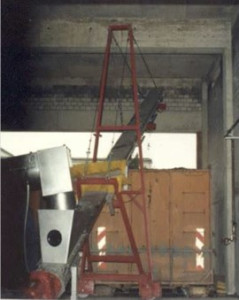

We supplied and installed two MC fine screens for a screenings conveyor system. The system has a capacity of 600,000 m³ and a maximum inflow of 2,380 liters per second.
Installed components
Key data
- Install date
- 1992
- Remark
- Sludge screens, Sludge up to 15% DS
Fine Screen
Type MC 112
- Capacity/screen
- 2,38 m³/s
- No. of machines
- 2
- Width
- 2.215 mm
- Discharge height screen 1
- 7.590 mm
- Discharge height screen 2
- 6.993 mm
- Slot opening
- 3 mm
Spiral Press
Type SP 280
- No. of machines
- 1
- Total capacity
- 3 m³/h
- Total length
- 7,000 mm
Spiral Conveyor
Type Bormet U260
- No. of machines
- 1
- Capacity
- 7 m³/h
- Total length
- 9.000 mm
