Southern germany
We supplied and installed three different systems. Our systems were successfully commissioned in August 1999. The plant has an inflow of 185 liters per second and operates around the clock, 7 days a week.
Installed components

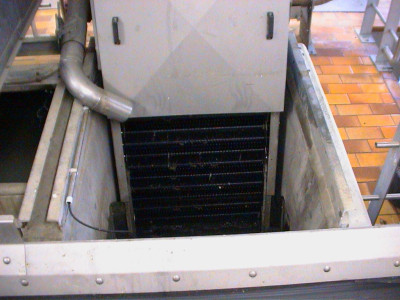

Fine Screen
Type MC 56
- No. of machines
- 1
- Capacity
- 185 l/s
- Width
- 975 mm
- Discharge height
- 2.217 mm
- Slot opening
- 5 mm

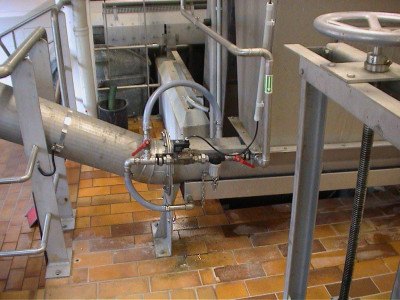

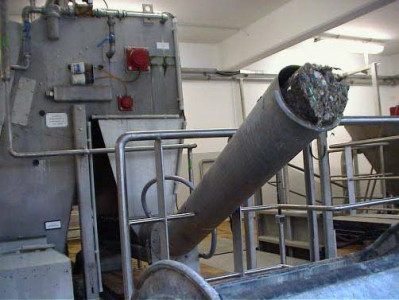

Screenings Washer
Type BSWP 20
- No. of machines
- 1
- Max. capacity
- 2 m³/h
- Length of main unit
- 1,400 mm
- Length of press pipe
- 1,500 mm

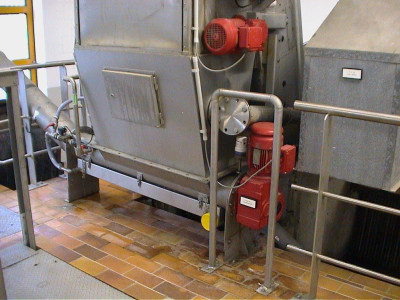

Sand Washer
Type SAW 18
- No. of machines
- 1
- Inlet sand/water mixture
- 12 l/s
- Sand washer diameter
- 1.800 mm
- Sand discharge height
- 2.300 mm
- Loss on ignition (washed sand)
- < 3%
