References

Spiral Conveyor and Sand Washing Plant

Northern Germany

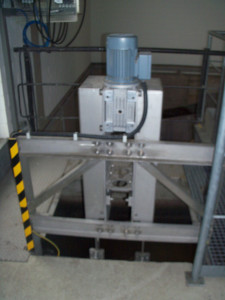

A CSO rainwater screen and a SAW-22 sand washer were delivered and installed at this location. The system has been operating successfully since 2012 and has impressed with its reliable performance in daily use ever since.

Installed components

Sand Washer

Type SAW 22

No. of machines: 1
Capacity per machine: 72 / 108 m³/h
Equivalent flow rate: 20 / 30 l/s
Separation efficiency: > 95% at grain size 0.2 mm
Loss on ignition: < 3.0%

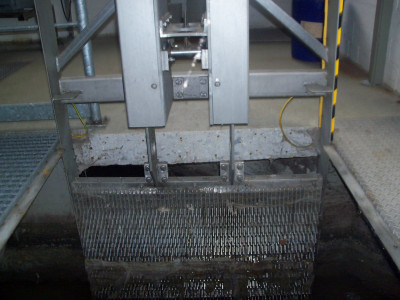

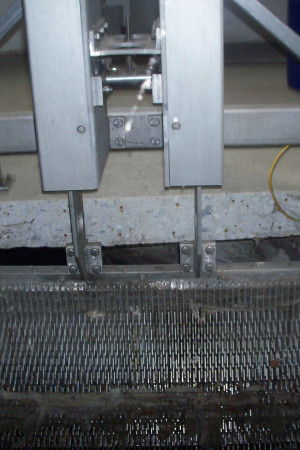

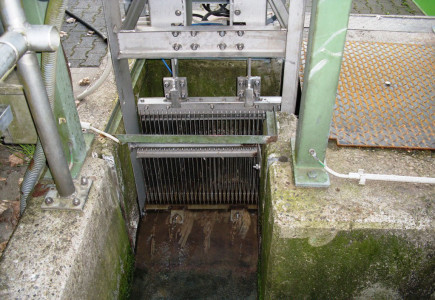

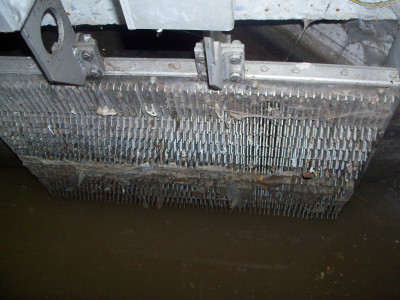

Screen

Type CSO

No. of machines: 1
Opening size: variable
Screen frame: 1.4301 / 1.4571 mm
Screen surface: 1.4301 mm

Rain weather rake type CSO

Heavy rainfall causes a sharp increase in the load on sewer networks and wastewater treatment plants. (...)

Sand Washer SAW

The SAW reliably removes organic components from sand and ensures thorough dewatering. (...)
