References

Sandwashing Plants

Central Germany

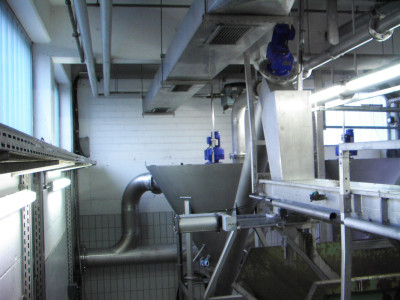

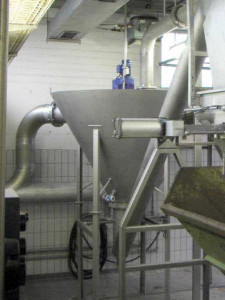

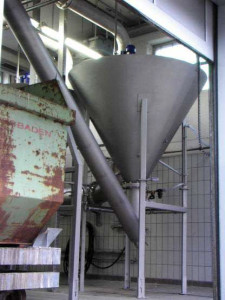

In 2005, two SAW-22 sand washers were delivered and installed at this site. Since then, the systems have been operating successfully and reliably, ensuring efficient sand treatment as part of mechanical wastewater treatment.

Installed components

Sand Washing Plant

Type SAW 22

No. of machines: 2
Capacity per machine: 72 / 108 m³/h
Loss on ignition (all inlets): < 3%
Separation efficiency (discharge of sand washer into grit trap): < 95% at grain size 0.2 mm
Special design for a maximum inflow of 108 m³/h (30 l/s) with continuous inflow from the grit trap (grit trap scraper and sand pumps running continuously)

Sand Washer SAW

The SAW reliably removes organic components from sand and ensures thorough dewatering. (...)
